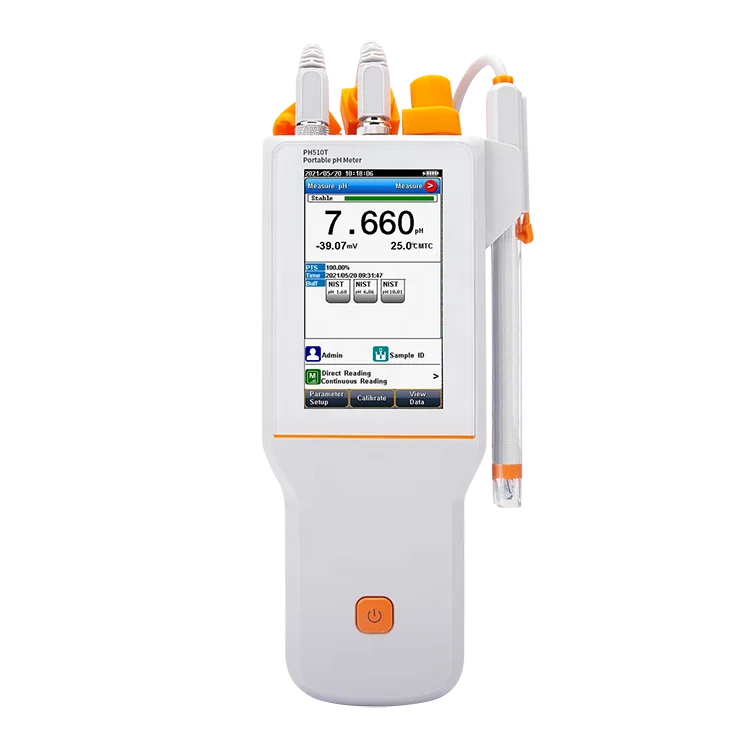

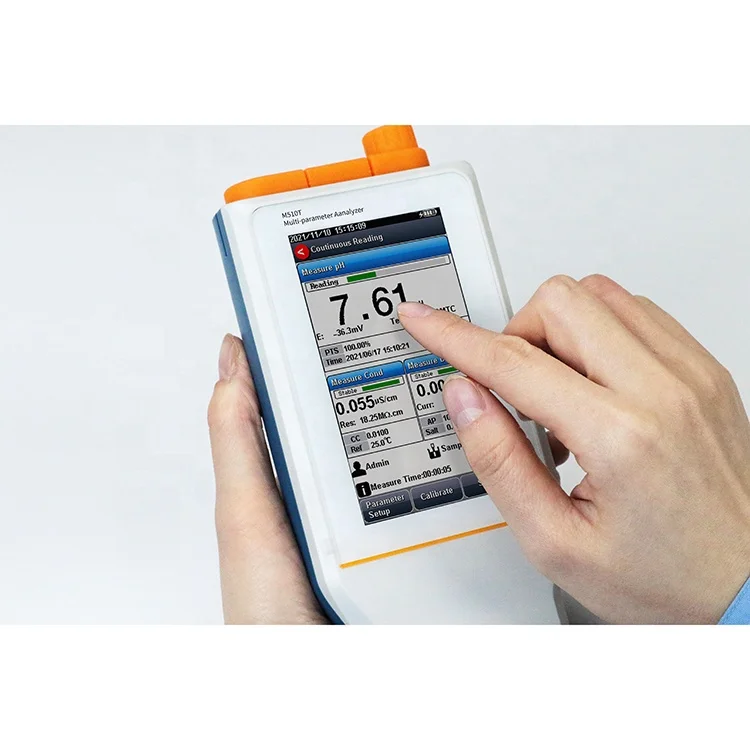

PH510T Portable pH/ORP Meter with touch screen panel

Parameters

Product Description

Features

* Color High contrast LCD touchscreen, 4.3 inches.
* Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.
* Multi-reading feature allows auto-read, timed-read and continuous-read.
* Automatic/Manual temperature compensation ensures accurate results.
* Auto-hold feature senses and locks the measurement endpoint.
* Data Storage 1000 sets for each parameter (GLP-compliant).
* Data analysis feature helps user review, compare and recalculate results.
* Support for USB communication.
* Auto-power off feature effectively extends the battery service life.
* Reset feature automatically resumes all settings back to factory default options.
* IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.

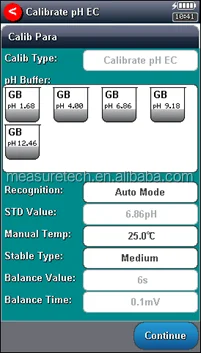

* 1-8 points calibration with Standard Recognition.
* Selectable pH buffer groups, including USA, NIST, DIN, GB, MERK, JIS.
* User-defined pH buffer or buffer group is supported.

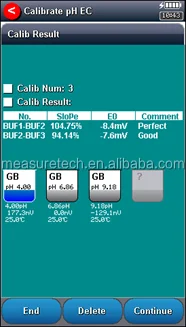

* Automatic electrode diagnosis with pH slope and offset display.

Model			PH510T
Parameters			pH/Temp.(mV/ORP)
pH	Range	-2.000 to 20.000 pH
		Resolution	0.1, 0.01, 0.001pH
		Accuracy	±0.002 pH
		Calibration Points	Up to 8
		Standard Customization	Yes
		Calibration Reminder	Yes
		Standard Recognition	USA, NIST, MERK, JIS, GB and DIN buffers
		Slope Limit	Yes
mV/ORP	Range	-2000.00 to 2000.00 mV
		Resolution	0.1, 0.01 mV
		Accuracy	±0.1 mV or ±0.03%
		EH ORP Mode	Yes
		ORP Calibration Points	1 custom point (relative mV)
Temperature	Range	-10 to 135 ºC, 14 to 275 ºF
		Unit	ºC, ºF
		Resolution	0.1
		Accuracy	0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
		Reading Prompts	Reading, Stable, Locked
		Temp. Compensation	ATC, MTC
Data management	Data Storage	1000 Groups
Data management		GLP Features	Yes

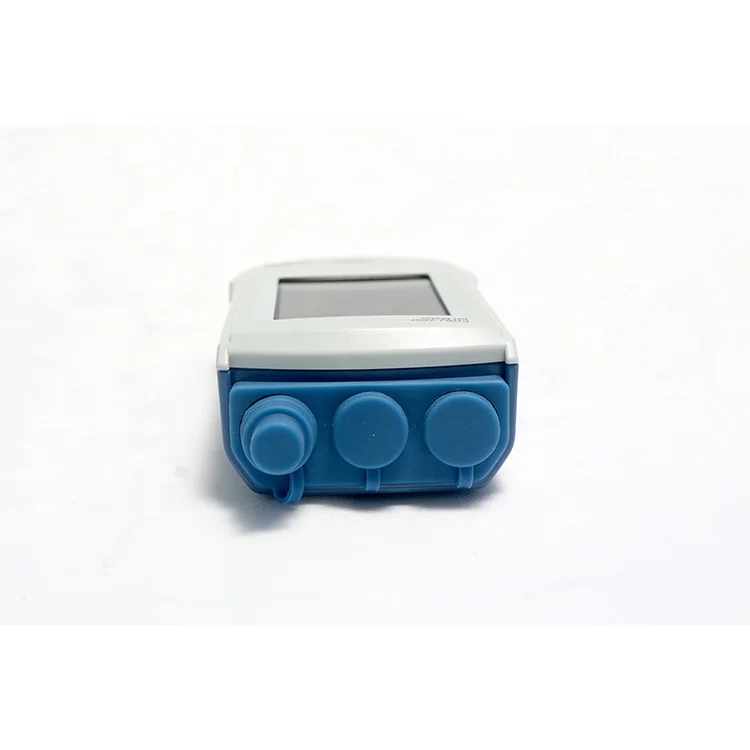

Inputs	pH Electrode	BNC(Q9)
Inputs		Temp. Probe	4-pin aviation connector
Outputs	USB	USB 2.0 flash memory device, PC, scanner
Outputs		Bluetooth	printer
Display options	Backlight	Yes
		Auto Shutdown	300, 600, 1200, 1800, 3600 sec., off
		IP Rating	IP65
		Date and Time	Yes
General	Power	Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
		Dimensions	90×255×40 mm
		Weight	500g (1.1 lb)

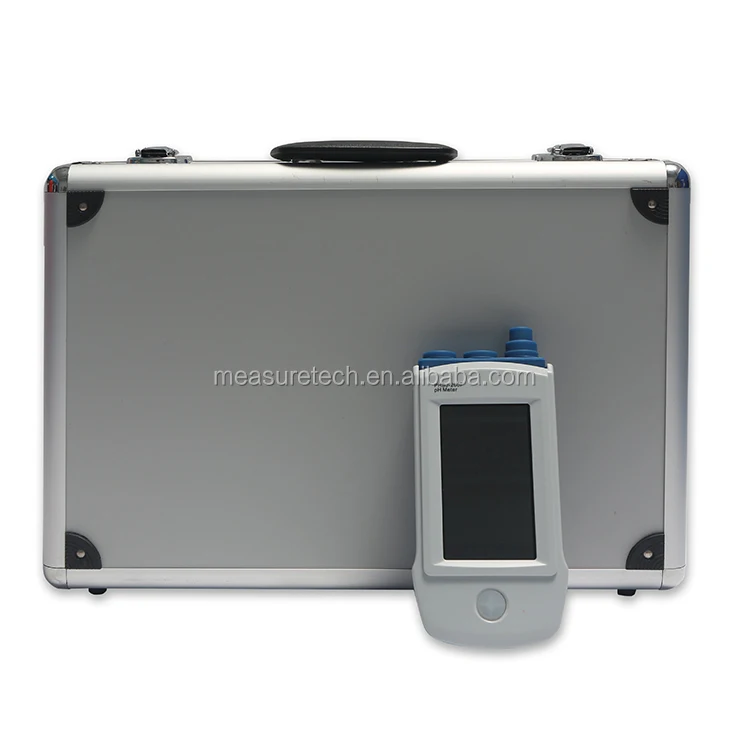

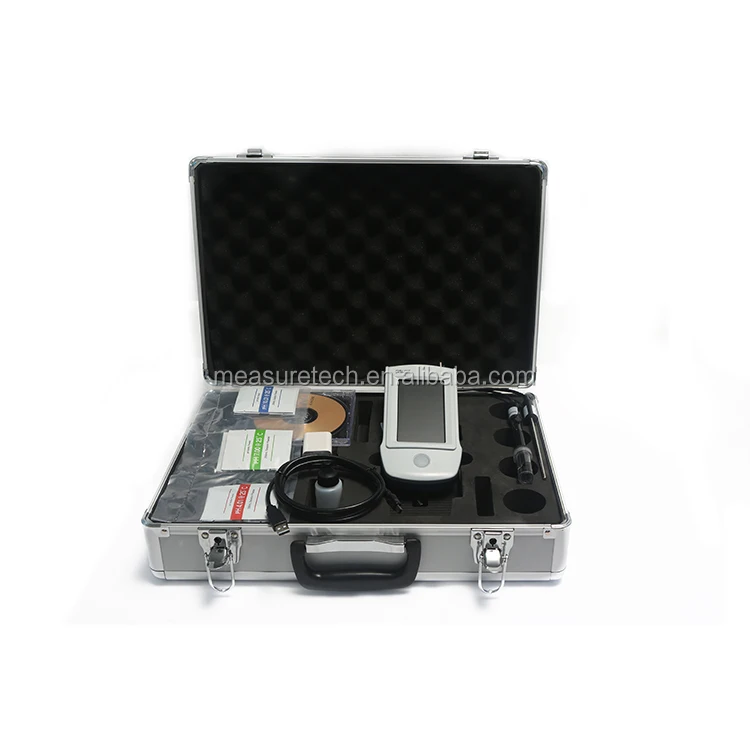

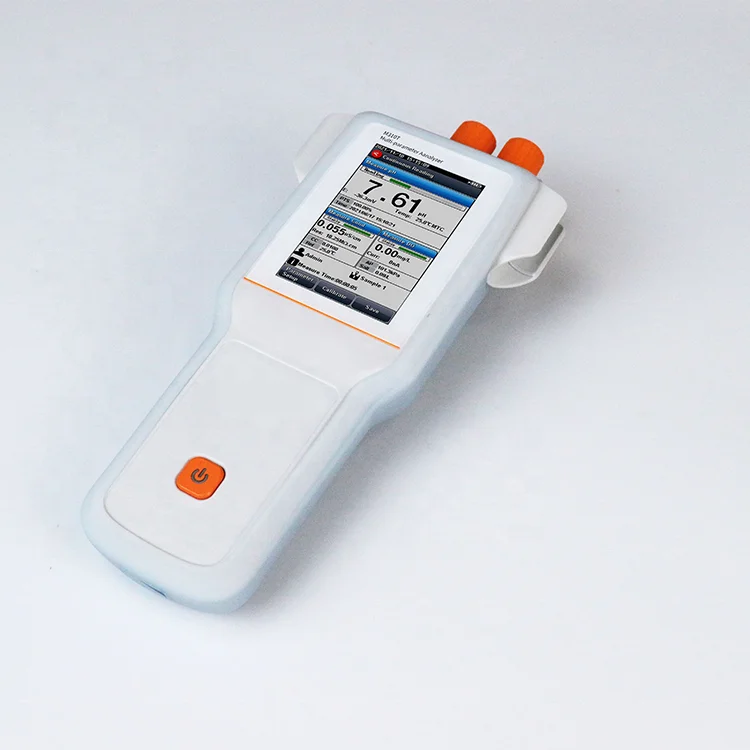

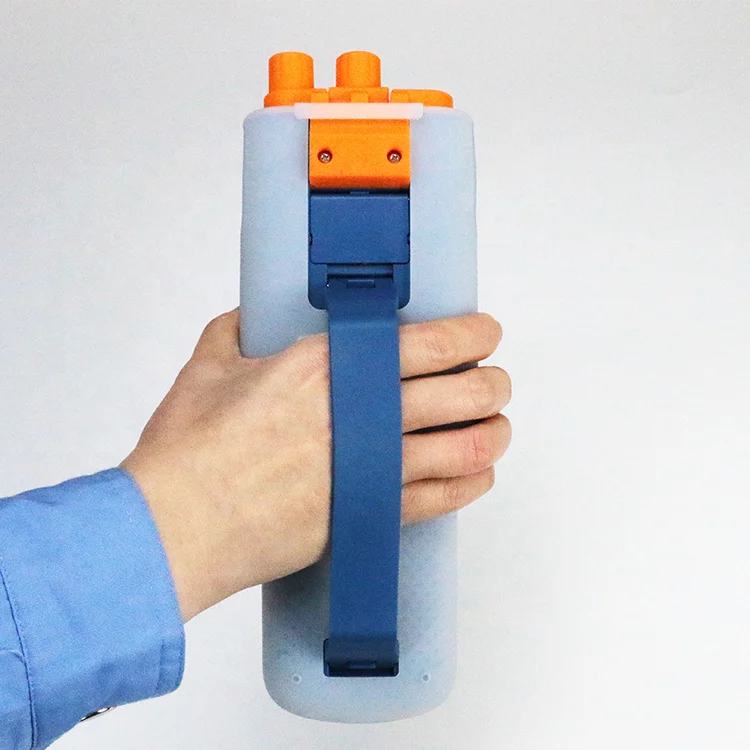

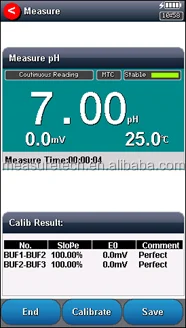

Detailed Images
