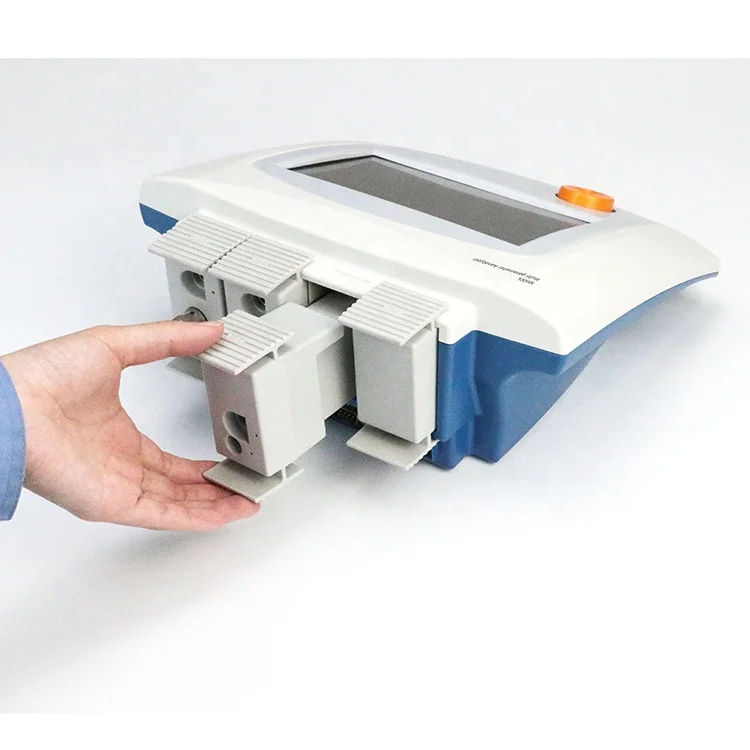

M600L multiparameter water quality analyzer

Get a Free Quote

Parameters

GENERAL FEATURES

  • Color High contrast LCD touchscreen, 7.0 inches.
  • Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
  • Multi-reading feature allows auto-read, timed-read and continuous-read.
  • Automatic/Manual temperature compensation ensures accurate results.
  • Data Storage 1000 sets for each parameter (GLP-compliant).
  • Data analysis feature helps user review, compare and recalculate results.
  • Support for USB or RS-232 communication.
  • Reset feature automatically resumes all settings back to factory default options.
  • IP54 waterproof.
  • Support for three modules, namely pH/ISE module, conductivity module and dissolved oxygen module.
  • Select from three modules to customize the four channels your way.
  • Four channels can be configured in any combination.

pH

  • 1-6 points calibration with Standard Recognition.
  • Selectable pH buffer groups, including NIST, DIN, GB.
  • Support for pH standard group customization.
  • Automatic electrode diagnosis with pH slope and offset display.

Ion

  • 1-6 points calibration
  • Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.
  • Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.
  • Over 10 methods are built-in, including F-, Cl-, Br-, I-, NO3-, BF4-, NH4+, K+, Na+, Ca2+, Cu2+, Pb2+, Ag+ and etc., user-defined method is supported.

Conductivity

  • 1-5 points calibration with Standard Recognition.
  • Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
  • Temperature compensation type (none, linear, pure water).

DO

  • Support for air-saturated water or zero oxygen calibration.
  • Auto barometric pressure compensation.
  • Manual Salinity Factor Correction.
  • Selectable pressure unit, including kPa, mbar, Torr, Atm.

Parameters pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)
pH Range -2.000 to 20.000 pH
Resolution 0.1,0.01,0.001pH
Accuracy ±0.002 pH
Calibration Points Up to 6
Standard Customization Yes
Calibration Reminder Yes
Standard Recognition NIST,GB,DIN buffers
Slope Limit Yes
mV/ORP Range -2000.00 to 2000.00 mV
Resolution 0.1, 0.01 mV
Accuracy ±0.1 mV or ±0.03%
EH ORP Mode Yes
ORP Calibration Points 1~2 custom point (relative mV)
pX Range -2.000 to 20.000 pX
Resolution 0.1,0.01,0.001 Px
Accuracy ±0.002 pX
Calibration Points Up to 6
ISE Range 0~19990
Units mol/L,mmol/L,g/L,mg/L,μg/L
Resolution Up to 4 significant digits
Accuracy ±0.3%
Calibration Points Up to 6
Conductivity Range 0.000 μS/cm to 3000 mS/cm
Resolution 0.001 μS/cm minimum, various with range selection
Accuracy ±0.5% FS
Reference Temperature 5,10,15,18,20,25 ºC
Calibration Points Up to 5
Standard Recognition 146.5μS/cm,1408μS/cm,12.85mS/cm,111.3mS/cm
Resistivity Range 5.00 Ω·cm~100.00 MΩ·cm
Resolution 0.01 Ω·cm minimum
Accuracy ±0.5% FS
TDS Range 0.000 mg/L~1000 g/L
Resolution 0.001ppm minimum,changed with range
Accuracy ±0.5%FS
Salinity Type NaCl%
Range (0.00~8.00)%
Resolution 0.01%
Accuracy ±0.1%
Dissolved Oxygen Concentration - Polarographic Range 0.00 to 99.99 mg/L
Resolution 0.01 mg/L
Accuracy ±0.1 mg/L
Calibration Reminder Yes
Calibration Points Air-saturated water or zero point
Barometric Compensation Yes
Manual Salinity Factor Correction Yes
Saturation -Polarographic Range  (0.0 to 600)%
Resolution 0.10%
Accuracy ±2.0%
Temperature Range -5 to 130 ºC
Unit ºC
Resolution 0.1
Accuracy ±0.1
Measurement Reading Mode Auto Read (Fast,Medium,Slow),Timed,Continuous
Reading Prompts Reading,Stable,Locked
Temp. Compensation ATC,MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Log Management Yes
Inputs pH Electrode BNC(Q9)
DO with Temp. Probe 6-pin Mini-DIN
Conductivity with Temp. Probe 8-pin Mini-DIN
Outputs USB, RS 232 USB 2.0 flash memory device,printer,PC
Display options Backlight Yes
Auto Shutdown 1~60 min,off
IP Rating IP54
Date and Time Yes
General Power AC Adapter,100-240V AC input,DC24V output
Dimensions/ Weight 280×280×130 mm/2500g (5.51 lb)

Applications

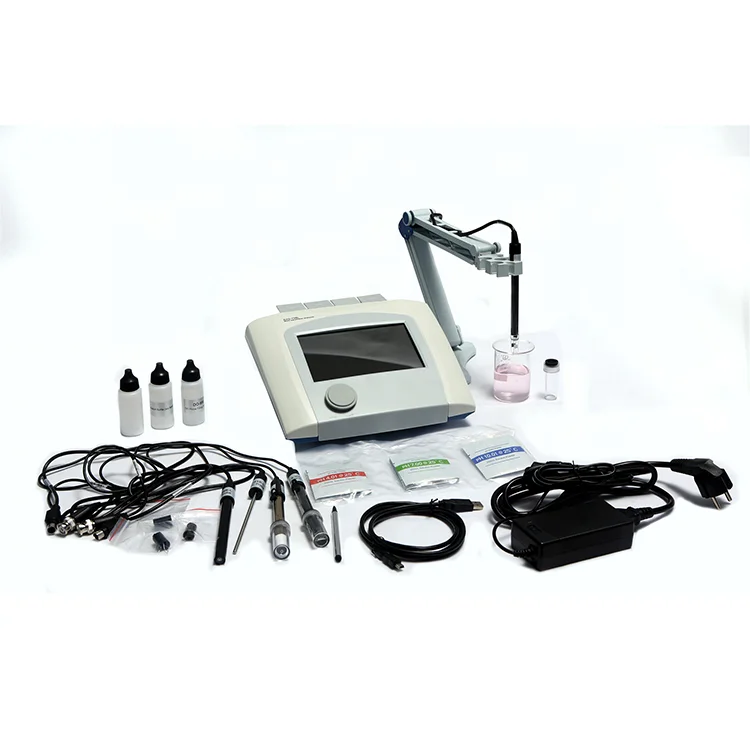

Standard Accessories

1 E-201-L PH Probe（two-in-one）

2 PF-202-L ISE F Probe with reference

3 DJS-1-L Conductive Probe

4 DO-958-L DO Probe

5 T-818-L ATC Probe

6 NIST pH buffer（PH 4.01, PH 7.00, PH 10.01）for one each bottle-50mL*3

7 1413μS/cm Standard solution-50mL*1

8 Electrode holder

9 Stylus

Specifications

Parameters pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)
pH Range -2.000 to 20.000 pH
Resolution 0.1,0.01,0.001pH
Accuracy ±0.002 pH
Calibration Points Up to 6
Standard Customization Yes
Calibration Reminder Yes
Standard Recognition NIST,GB,DIN buffers
Slope Limit Yes
mV/ORP Range -2000.00 to 2000.00 mV
Resolution 0.1, 0.01 mV
Accuracy ±0.1 mV or ±0.03%
EH ORP Mode Yes
ORP Calibration Points 1~2 custom point (relative mV)
pX Range -2.000 to 20.000 pX
Resolution 0.1,0.01,0.001 Px
Accuracy ±0.002 pX
Calibration Points Up to 6
ISE Range 0~19990
Units mol/L,mmol/L,g/L,mg/L,μg/L
Resolution Up to 4 significant digits
Accuracy ±0.3%
Calibration Points Up to 6
Conductivity Range 0.000 μS/cm to 3000 mS/cm
Resolution 0.001 μS/cm minimum, various with range selection
Accuracy ±0.5% FS
Reference Temperature 5,10,15,18,20,25 ºC
Calibration Points Up to 5
Standard Recognition 146.5μS/cm,1408μS/cm,12.85mS/cm,111.3mS/cm
Resistivity Range 5.00 Ω·cm~100.00 MΩ·cm
Resolution 0.01 Ω·cm minimum
Accuracy ±0.5% FS
TDS Range 0.000 mg/L~1000 g/L
Resolution 0.001ppm minimum,changed with range
Accuracy ±0.5%FS
Salinity Type NaCl%
Range (0.00~8.00)%
Resolution 0.01%
Accuracy ±0.1%
Dissolved Oxygen Concentration - Polarographic Range 0.00 to 99.99 mg/L
Resolution 0.01 mg/L
Accuracy ±0.1 mg/L
Calibration Reminder Yes
Calibration Points Air-saturated water or zero point
Barometric Compensation Yes
Manual Salinity Factor Correction Yes
Saturation -Polarographic Range  (0.0 to 600)%
Resolution 0.10%
Accuracy ±2.0%
Temperature Range -5 to 130 ºC
Unit ºC
Resolution 0.1
Accuracy ±0.1
Measurement Reading Mode Auto Read (Fast,Medium,Slow),Timed,Continuous
Reading Prompts Reading,Stable,Locked
Temp. Compensation ATC,MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Log Management Yes
Inputs pH Electrode BNC(Q9)
DO with Temp. Probe 6-pin Mini-DIN
Conductivity with Temp. Probe 8-pin Mini-DIN
Outputs USB, RS 232 USB 2.0 flash memory device,printer,PC
Display options Backlight Yes
Auto Shutdown 1~60 min,off
IP Rating IP54
Date and Time Yes
General Power AC Adapter,100-240V AC input,DC24V output
Dimensions/ Weight 280×280×130 mm/2500g (5.51 lb)
