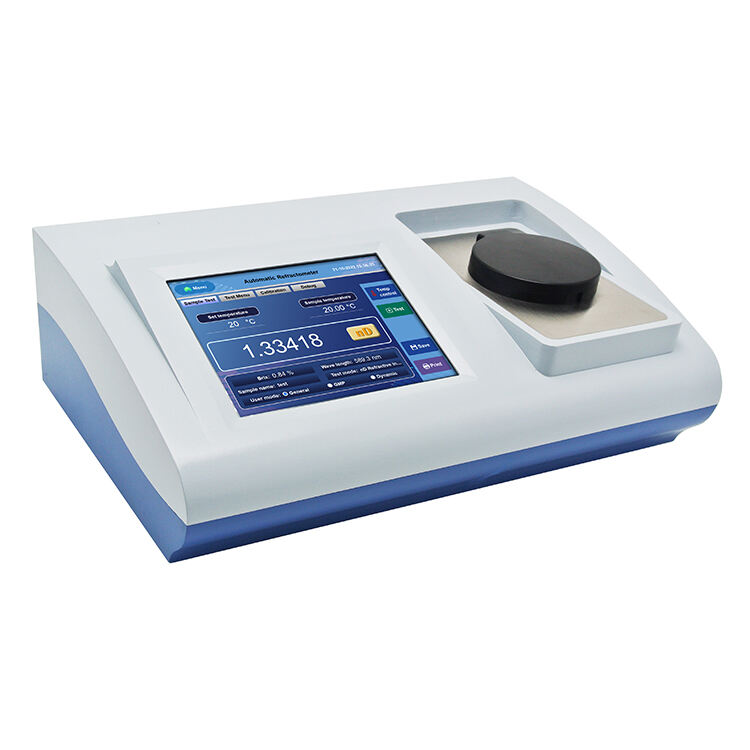

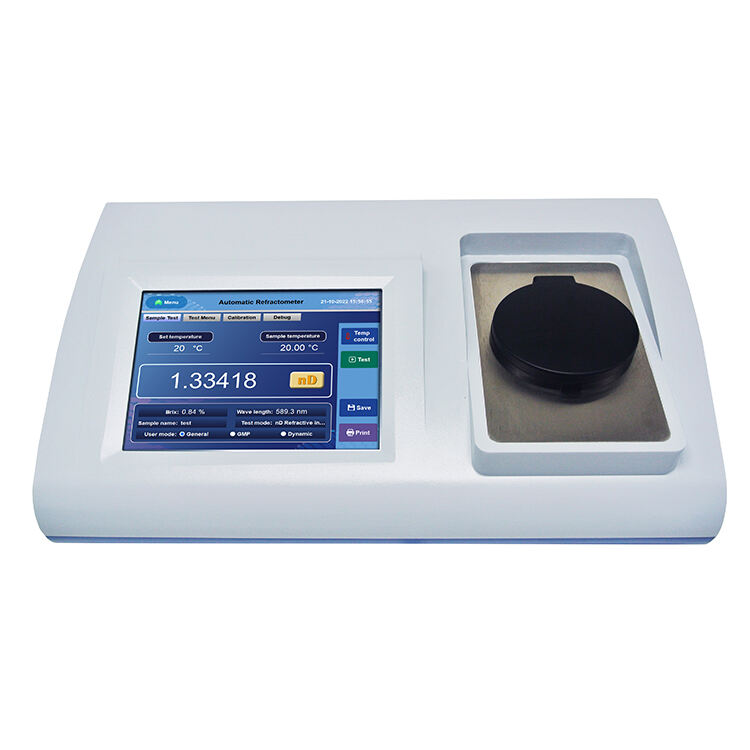

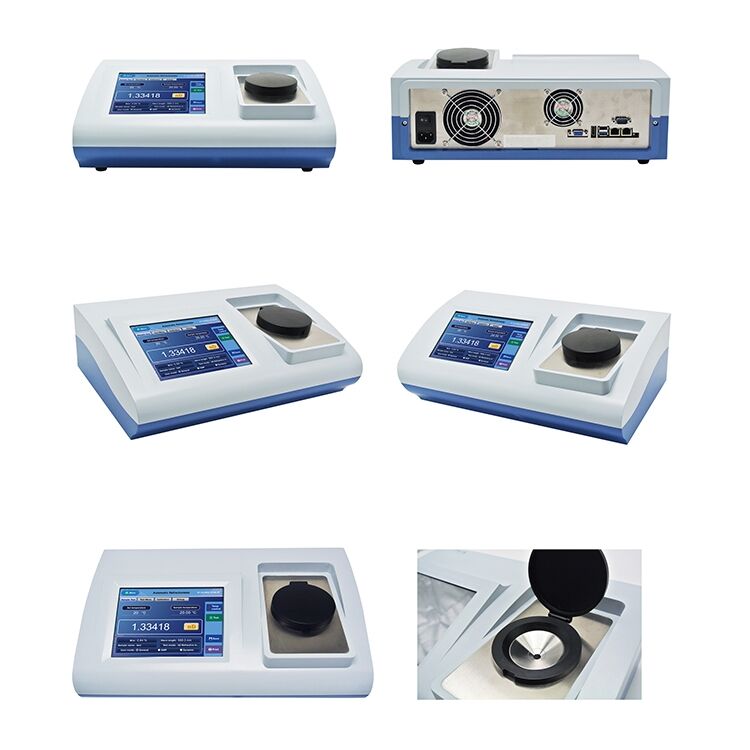

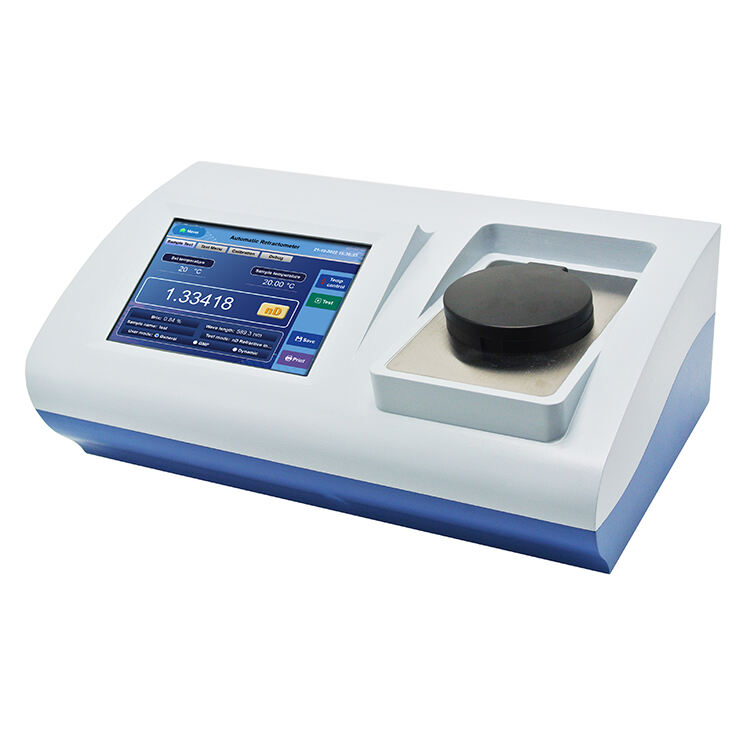

SGW-756/SGW-753 Automatic Digital Refractometer
Characteristics
High resolution CCD detection system.
Fast measuring speed, good repeatability, and wide temperature control range.
Measuring the corrosion resistance, scratch resistance, easy cleaning, and durability of prism.
Minimum sample amount is approximately 0.5ml, and the sample can be recycled.
LED light source that lasts over 100000 hours.
Multiple measuring methods: Fragrance refractive index, Vegetable oil refractive index, F42 fructose corn syrup, F55 fructose corn syrup concentration, Glucose concentration, Sucrose concentration, Solid content (juice vegetables, canned products, soft drinks), Honey water content, nD20 and user-defined formula.
It meets graded management, provides scientific and user-friendly operation.
Parameters/Model | SGW-756 | SGW-753 | |
Measuring range | Refractive index (nD): 1.30000-1.70000 | ||
Brix:0-100% | |||
Accuracy | Refractive index (nD) : ±0.0002 | ||
Brix: ±0.1% | |||
Resolution | Refractive index (nD) : 0.00001 | ||
Brix: 0.01% | |||
Audit Trail | Optional | / | |
Temp. control mode | Peltier(Built-in) | ||
Temp. display range | 0-100℃ | ||
Temp. control range | 5-85℃ | ||
Temp. control accuracy | ±0.02℃ | ||

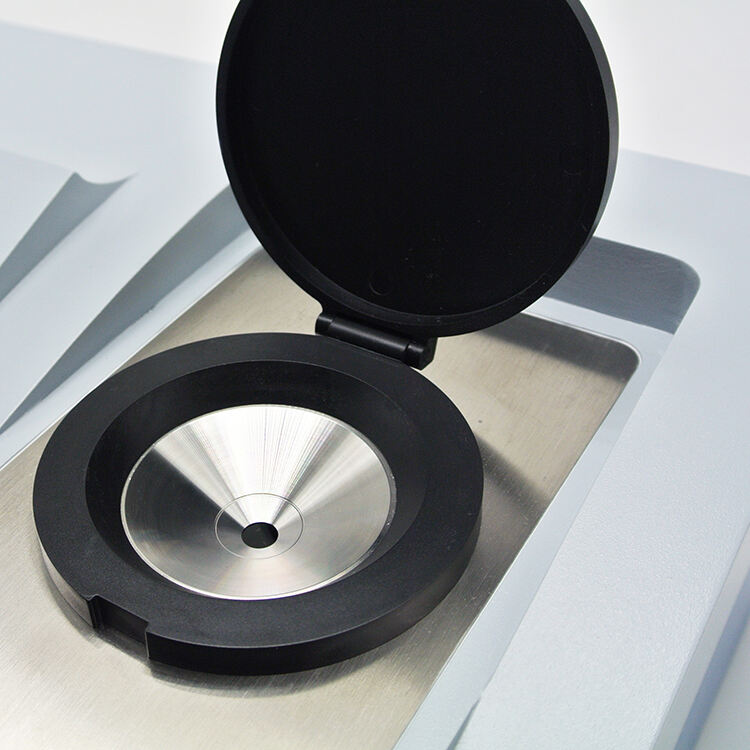

Prism | Artificial sapphire | ||
Operating system | Windows | / | |
Display | 8 inch color touch screen | ||
Data storage | 16G | 10000 sets | |
Interface | USB,Keyboard,Mouse,Universal Printer,Ethernet,Optional: WLAN | USB,memory Disk | |
Power supply | 100V~240V, 50/60Hz, 150W | ||
Overall dimensions | 570mm×460mm×300mm | ||
Weight(gross) | 5Kg |
