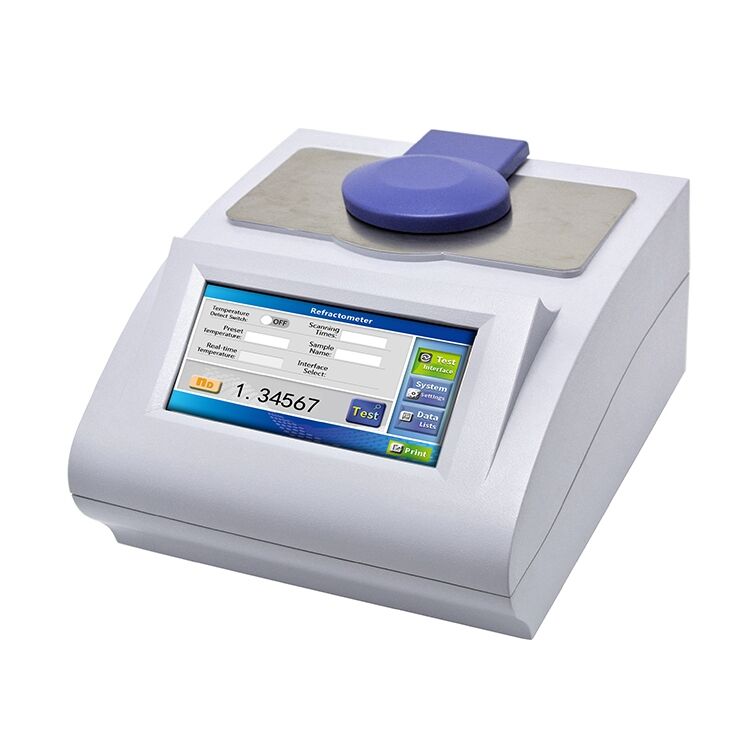

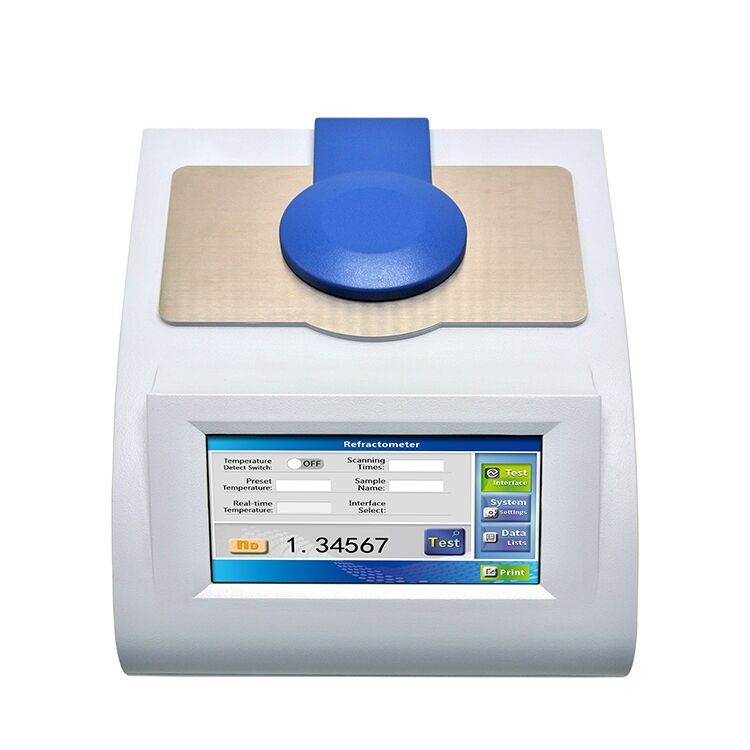

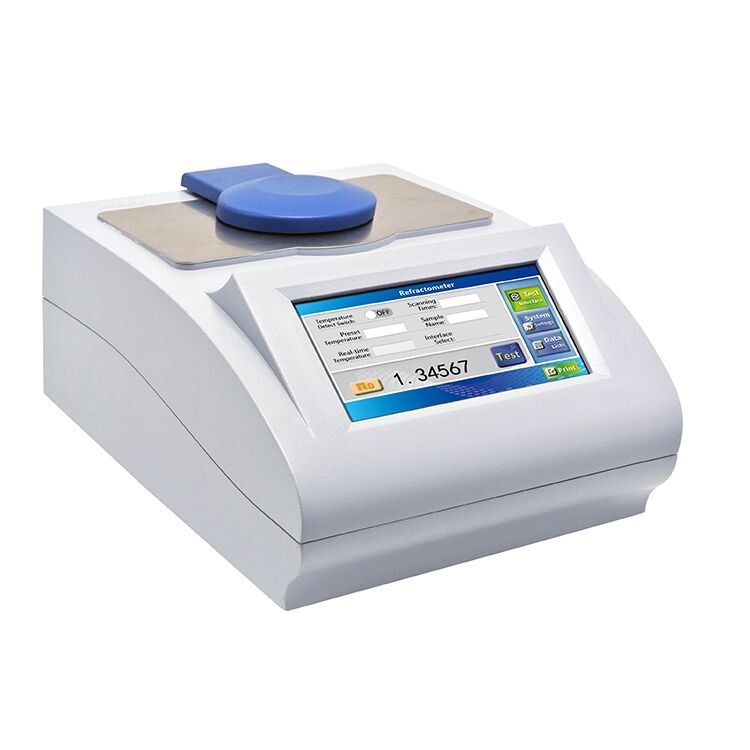

SGW-733/SGW-731 Automatic Digital Refractometer
Characteristics
Full automatic measuring, high resolution CCD detection system.
Temperature correction function to avoid human error.
Functions of temperature display, automatic correction and data storage
LED light source that lasts over 100000 hours.
Multiple measuring methods: F42 fructose corn syrup, F55 fructose corn syrup concentration, Glucose concentration, Sucrose concentration, Solid content (juice vegetables, canned products, soft drinks), Honey water content, nD20 and user-defined formula.Temperature control, temperature automatic correction and saving the data (SGW-733).
Touch Screen.
Parameters/Model | SGW-733 | SGW-731 |
Measuring range | Refractive index (nD): 1.30000-1.70000 | |
Brix : 0-100% | ||
Measuring accuracy | Refractive index (nD): ±0.0002 | |
Brix : ±0.1% | ||
Measuring resolution | Refractive index (nD): ±0.00001 | |
Brix : ±0.01% | ||
Temp. control mode | Peltier(Built-in) | / |
Temp. display range | 0-90℃ | / |
Temp. control range | 10-60℃ | / |
Temp. control accuracy | ±0.1℃ | / |

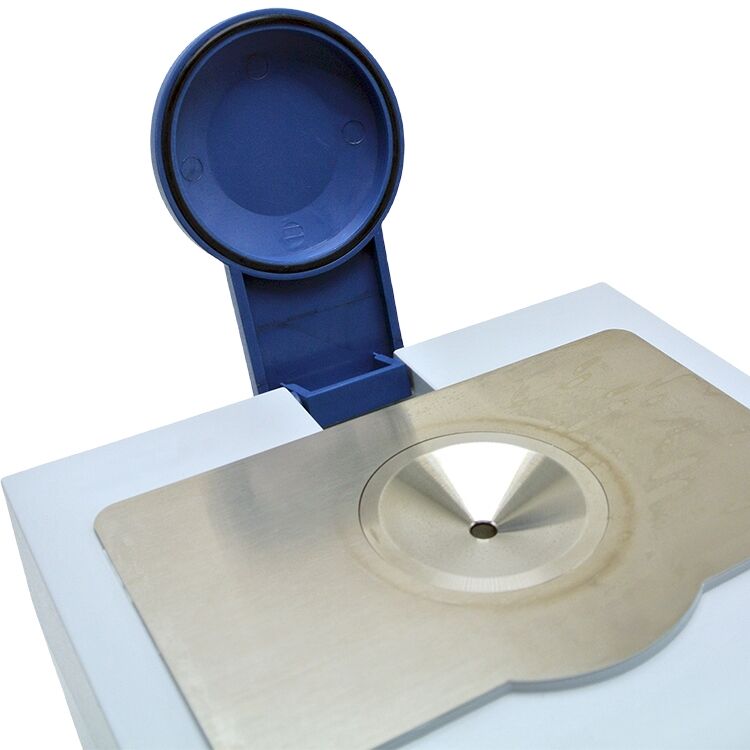

Prism | Hard glass | |
Data storage | 1000 sets | |
Display | 7 inch color touch screen | |
Interface | RS232,USB,menory disk | |
Power supply | 110-250V,50w | |
Overall dimensions | 500mm×330mm×220mm | |
Weight(gross) | 9Kg |
