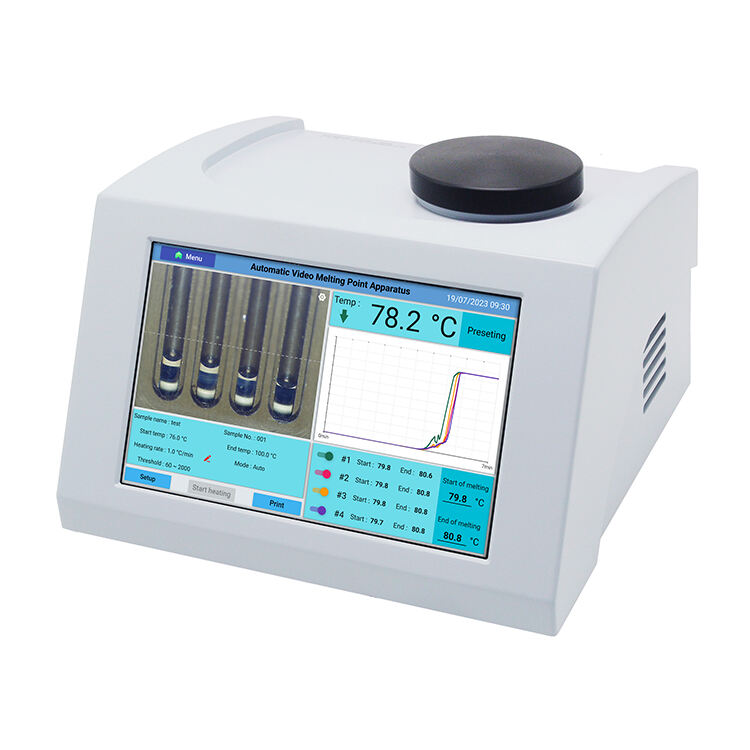

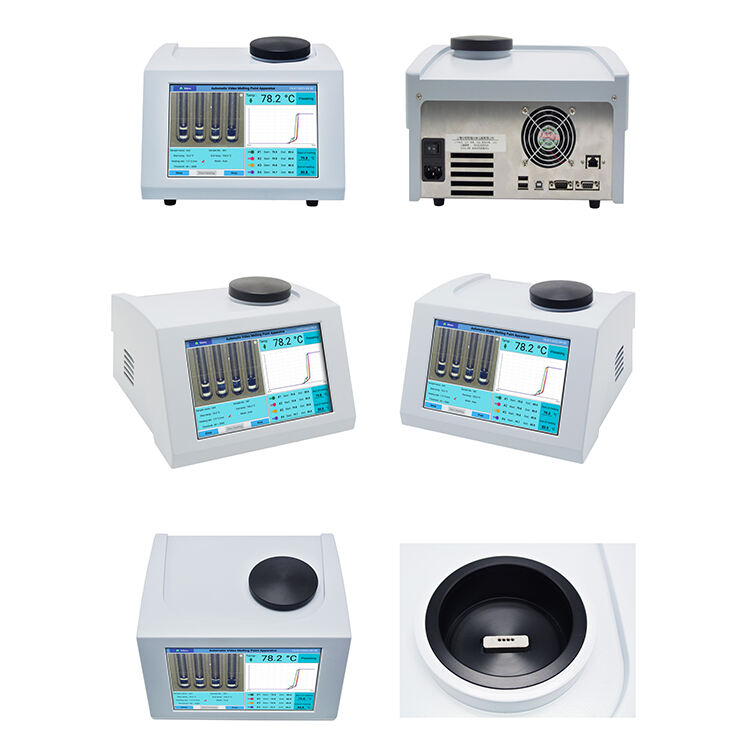

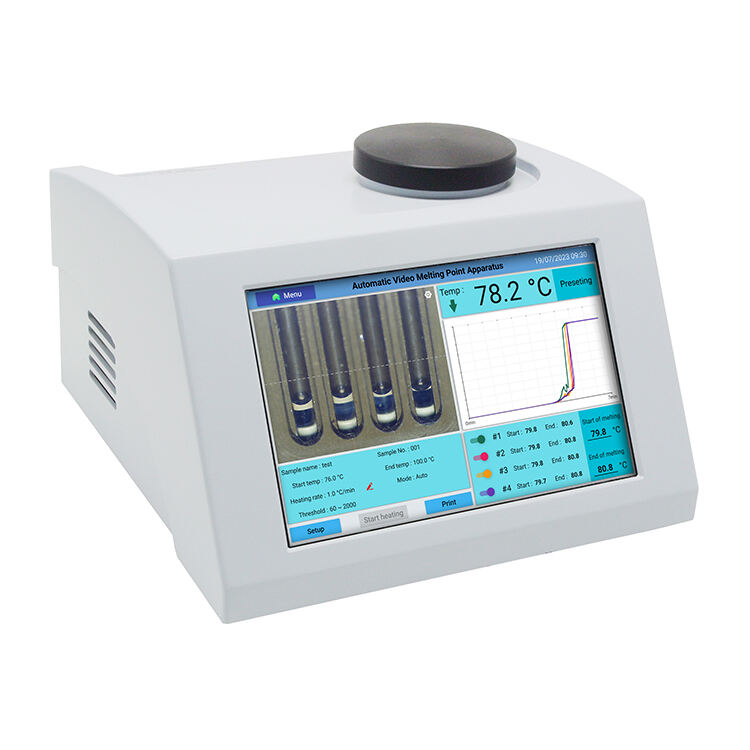

SGW-685/682/681 Video Melting Point Apparatus

SGW-685/682/681 Video Melting Point Apparatus

Characteristics

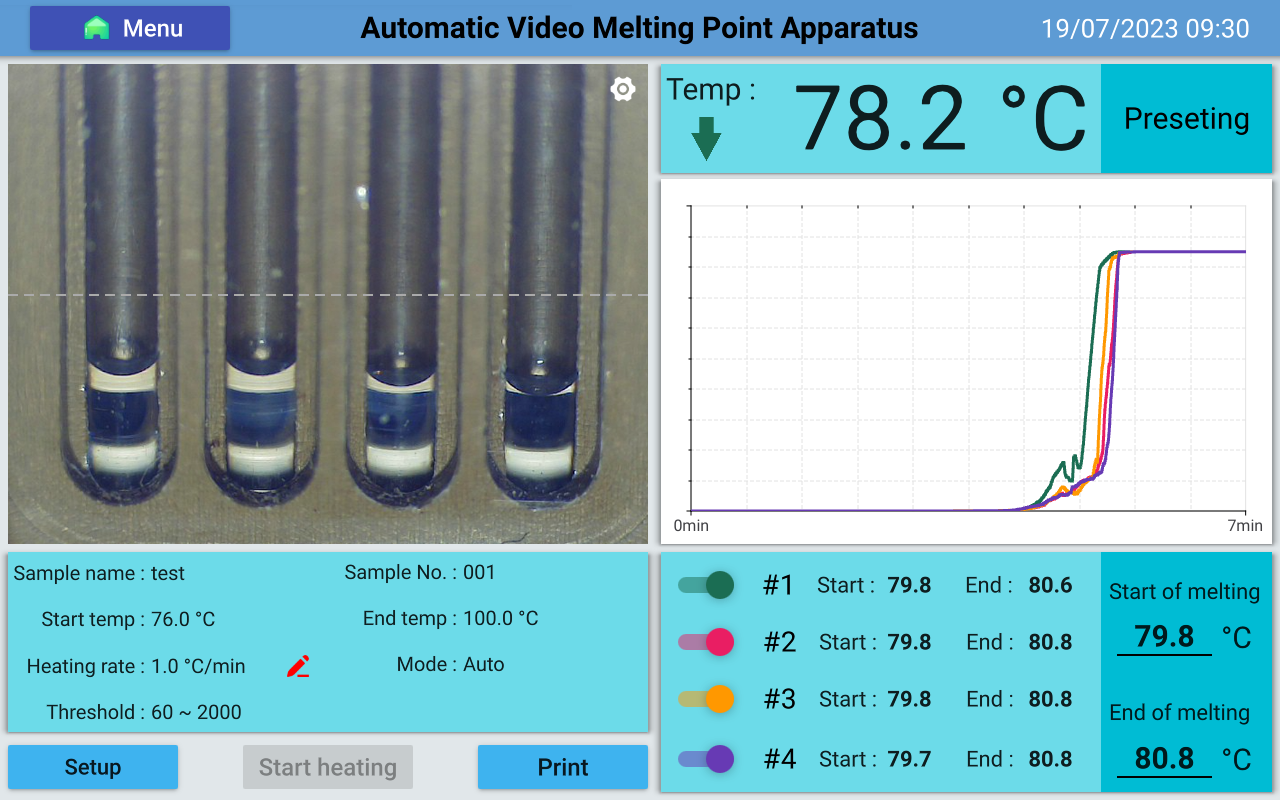

Android system with 10.1 inch touch screen, provides melting videos playback.
720P HD camera for clear observation.
Use PID & PWM to control temperature.
The light source brightness and detection sensitivity can be adjusted to better measure dark color samples.
The instrument can measure 4 capillaries as the same time.
Audit tracking function is optional, which meets the relevant requirements of the National Pharmacopoeia, GMP, GLP, and FDA/21CFR Part 11, and has user management permissions.

Parameters/Model No	SGW-685	SGW-682	SGW-681
Measurement range	Room temperature – 400℃	Room temperature – 360℃
Measurement mode	Auto / visual (HD camera, video capture, playback monitoring)
Measurement methods	200	150	100
Number of Users	200	150	/
Audit trail	Optional	Optional	/
Electronic Signature	Yes	Yes	/
Minimum digital display	0.01℃
Linear heating-up rate	0.1℃/min~20℃/min
Accuracy	≤200℃: ±0.3℃/＞200℃: ±0.5℃		≤200℃: ±0.4℃/＞200℃: ±0.7℃
Repeatability	0.3℃ (heating rate: 1.0℃/min)
Linear heating rate error	±10%

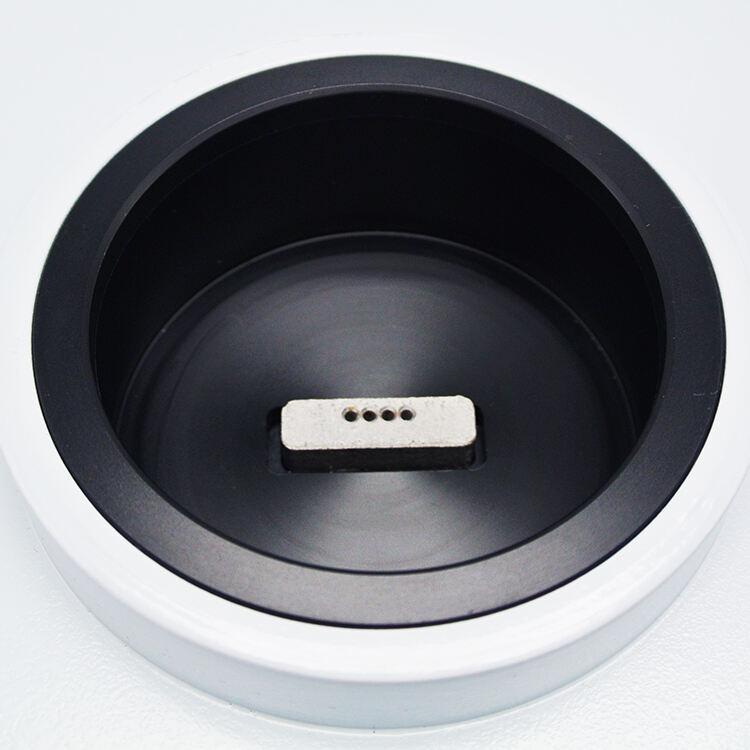

Number of capillary	4
Capillary dimensions	Outer diameter: φ1.4mm/ Inner diameter: φ1.0mm/ Length: 90mm
Height of sample	3mm
Operation System	Android
Data storage	128G	64G
Display	10.1 inches touch screen
Graph storage	40000 sets	20000 sets	10000 sets
Interface	RS232x1,USBx3,RJ-45,WIFI		1 x RS232、3 x USB
Power Supply	100~240 V，50/60 Hz，150 w
Overall Dimension	495mm×493mm×350 mm
Gross Weight	5Kg
